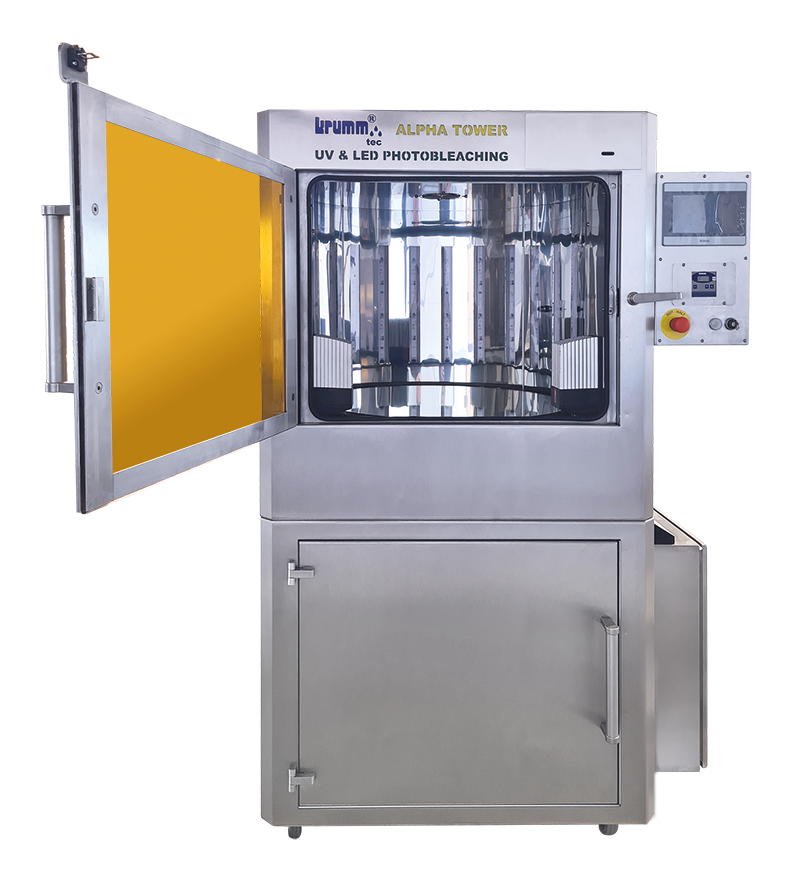

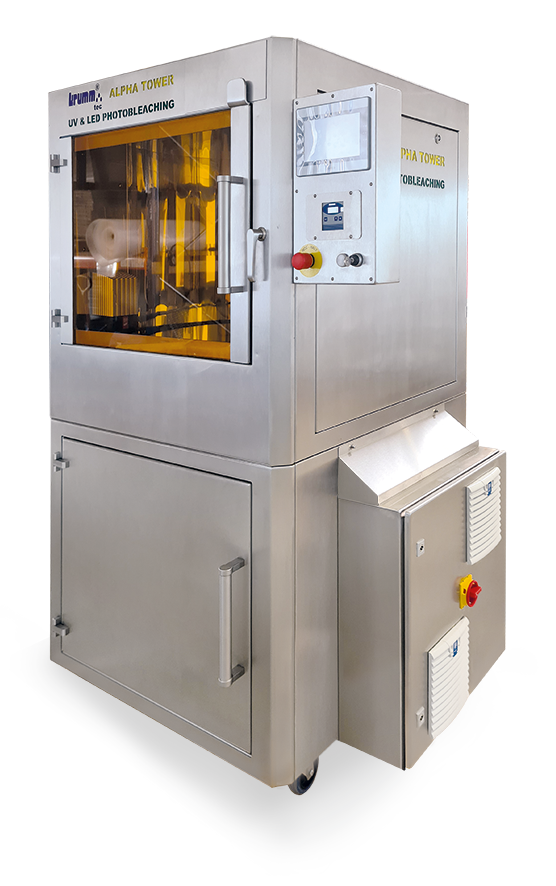

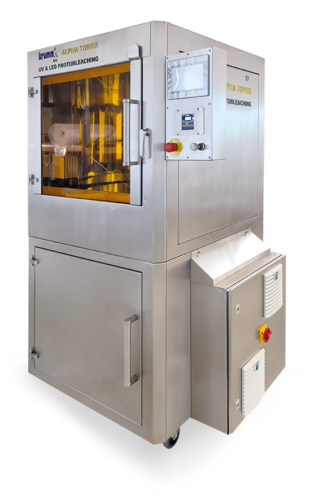

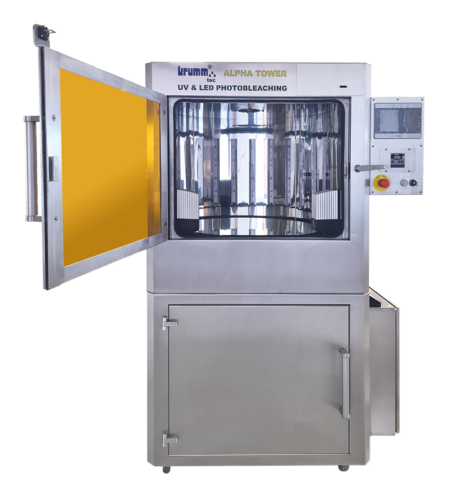

Alpha Tower S unlimited – LED photobleaching
The Alpha Tower S is an LED curing system designed for the controlled photopolymerisation and post-curing of components. The combination of nitrogen flushing, precise temperature control, LED irradiation and a turntable ensures a uniform and reproducible curing process.
Features:

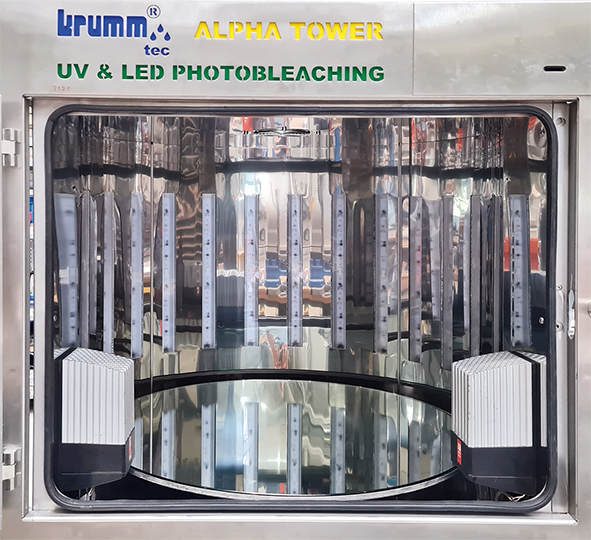

18 LED lamps with a total output of 360 W
LED wavelengths: 365 nm, 405 nm and 415 nm
Automatic nitrogen flushing and saturation monitoring
Temperature control up to a maximum of 50 °C
Rotary turntable for uniform component irradiation
Process control with adjustable process time
Fan with 310 m³/h
Locked chamber door for safe process operation
-
Workpiece material
- FDM (prototyping)
- Plastics
- Polyjet (prototyping)
- SLA (prototyping)
- SLS (prototyping)
-
Sizes
- Small sizes 600 x 800 mm
-
Cleaning
-
Methods
- Post-exposure of plastics
-
Specifications
- External dimensions: 1300 × 1300 × 2200 mm
- Maximum part size: D= 690 mm / h= 450 mm
- Light source: LED
18 LEDs, 20 W each
6x LEDs, 365 nm wavelength
6x LEDs, 405 nm wavelength
6x LEDs, 415 nm wavelength
