Air filter systems

For extraction and filtration of solid parts and dry dust, steams and gas

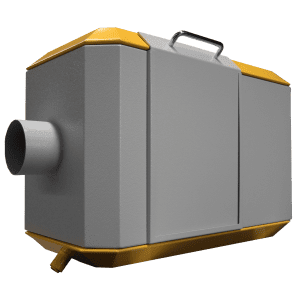

LRF 0K5

Principle function:
mechanisc

Air capacity:
500 m³/h

Output::
0,2 kW

Tension:
220 V / 50/60 Hz

Protection category:
IP 54

Sound level:
60 dB(A)

External dimension (WxHxD):
550 x 350 x 300 mm

Weight:
20 kg

Adapter:
100 mm



Air performance/volume flow of 500 m³/h, Sound level 60 dB(A)

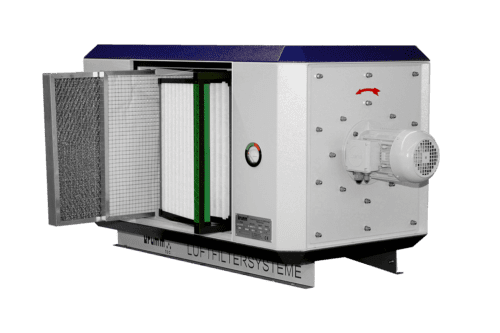

LRF 1K5

Principle function:
mechanisc

Air capacity:
1500 m³/h

Output::
0,37 kW

Tension:
400 V / 50/60 Hz

Protection category:
IP 54

Sound level:
70 dBA

External dimension (WxHxD):
1100 x 450 x 650 mm

Weight:
55 kg

Adapter:
150/200 mm

Air performance/volume flow of 1500 m³/h, Sound level 60 dB(A)

LRF 2K0

Principle function:
mechanisc

Air capacity:
2000 m³/h

Output::
0,75 kW

Tension:
400 V / 50/60 Hz

Protection category:
IP 54

Sound level:
75 dBA

External dimension (WxHxD):
1250 x 600 x 650 mm

Weight:
75 kg

Adapter:
200/250 mm

Air performance/volume flow of 2000 m³/h, Sound level 65 dB(A)

LRF 3K0

Principle function:
mechanisc

Air capacity:
3000 m³/h

Output::
1,8 kW

Tension:
400 V / 50/60 Hz

Protection category:
IP 54

Sound level:
75 dBA

External dimension (WxHxD):
1400 x 750 x 650 mm

Weight:
100 kg

Adapter:
250/300/350 mm

Air performance/volume flow of 3000 m³/h, Sound level 74 dB(A)

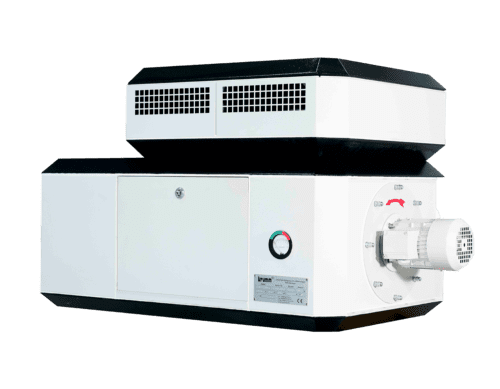

LRF 4K0

Principle function:
mechanisc

Air capacity:
4000 m³/h

Output::
2,2 kW

Tension:
400 V / 50/60 Hz

Protection category:
IP 54

Sound level:
75 dBA

External dimension (WxHxD):
1400 x 700 x 650 mm

Weight:
100 kg

Adapter:
250/300/350 mm

Air performance/volume flow of 4000 m³/h, Sound level 80 dB(A)

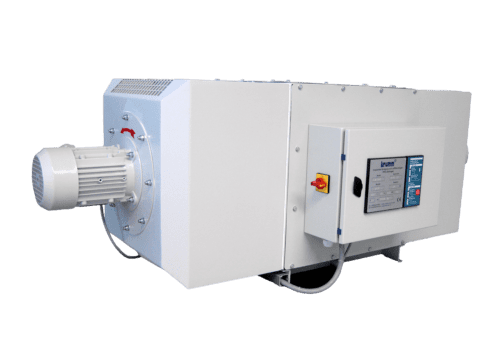

LRF/E 1K0–3K0

Principle function:
electrostatically

Nominal volumetric air flow min./max.:
1000 / 5000 m³/h

Degree of separation:
≤99,8% depently of particle size



According to implementation: Power 1000 up to 4800m³/h

LRF/E 4K0–5K0

Principle function:
electrostatically

Nominal volumetric air flow min./max.:
1000 / 5000 m³/h

Degree of separation:
≤99,8% depently of particle size

According to implementation: Power 1000 up to 4800m³/h
