Mould testing units - Krumm-tec

For cleaning, purging, pressure and flow measurements of cooling channels, and injection moulds

FPG 1000 – Krumm-tec

Channels:
1

Pressure test:
7 bar

Cleaning pressure medium:
2–4 bar

Necessary compressed air connection:
6 bar

Volume flow / Pump:
18 l/min

Power connection V/A / Hz:
400/16 / 50

Tank capacity min./max.:
30 l

Filter element min./max.:
100/300 μ

Dimensions (LxBxH):
800x800x1120mm

Weight:
180 kg

For cleaning, purging, pressure and flow measurements

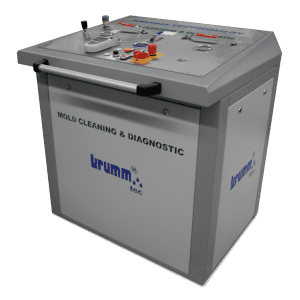

FPG 2000 – Krumm-tec

Channels:
2

Pressure test:
7 bar

Cleaning pressure medium:
2–4 bar

Necessary compressed air connection:
6 bar

Volume flow / Pump:
18 l/min

Power connection V/A / Hz:
400/16 / 50

Tank capacity min./max.:
60/100 l

Filter element min./max.:
100/300 μ

Dimensions (LxBxH):
1200x1000x1200mm

Weight:
400 kg

For cleaning, purging, pressure and flow measurements

FPG 3000 – Krumm-tec

Channels:
4

Pressure test:
7 bar

Cleaning pressure medium:
2–4 bar

Necessary compressed air connection:
6 bar

Volume flow / Pump:
18 l/min

Power connection V/A / Hz:
400/16 / 50

Tank capacity min./max.:
80/150 l

Filter element min./max.:
100/300 μ

Dimensions (LxBxH):
1440x1250x1200mm

Weight:
500 kg

For cleaning, purging, pressure and flow measurements

FPG 5000 – Krumm-tec

Channels:
1-6

Cleaning pressure medium:
2–4 bar

Necessary compressed air connection:
6 bar

Volume flow / Pump:
30 l/min

Power connection VA / Hz:
400/16 / 50

Separated S.S. tank (Cleaning/Neutral):
100 l / 100 l

Filter element min./max.:
100/300 μ

Dimensions (LxWxH):
1140x1250x1200mm

Weight:
500 kg

Cleaning of heat transferring surfaces in temperature control circuit

FPG 4000 – Krumm-tec

Channels:
6

Pressure test:
7 bar

Cleaning pressure medium:
2–4 bar

Necessary compressed air connection:
6 bar

Volume flow / Pump:
18 l/min

Power connection V/A / Hz:
400/16 / 50

Tank capacity min./max.:
100/150 l

Filter element min./max.:
100/300 μ

Dimensions (LxBxH):
1640x1250x1200mm

Weight:
550 kg

For cleaning, purging, pressure and flow measurements
